EGON
-
Radial Tapping Machine Series
Specification:
SW4027－1200 Universal
Tapping capacity(Steel):
M6-M27
Working radius:
1200mm
Max.height of workpiece:
1100mm
Spindle speed:
2speed A.60/120rpm B. 70/180rpm
Drive motor:
0.75KW/380V
Elevating motor:
0.09kw/380v
Table dimensions:
1000*500mm
Weight:
270kg
Package Size:
1150*760*1525mm
Specification:
S4020－900
Tapping capacity(Steel):
M5-M20
Working radius:
900mm
Max.height of workpiece:
400mm
Spindle speed:
2speed 180/320rpm
Drive motor:
0.55KW/380V
Table dimensions:
680*400mm
Weight:
160kg
Package Size:
910*770*1200mm
Specification:
S4016－800
Tapping capacity(Steel):
M4-M16
Working radius:
800mm
Max.height of workpiece:
400mm
Spindle speed:
2speed 180/320rpm
Drive motor:
0.37KW/380V
Table dimensions:
680*400mm
Weight:
145kg
Package Size:
910*770*1200mm
Specification:
S4148－1200
Tapping capacity(Steel):
M12-M48
Working radius:
1200mm
Max.height of workpiece:
1100mm
Spindle speed:
2speed 22/78rpm
Drive motor:
1.1KW/380V
Elevating motor:
0.09kw/380v
Table dimensions:
1000*600mm
Weight:
330kg
Package Size:
1150*760*1525mm
Specification:
S4156－1350
Tapping capacity(Steel):
M20-M56
Working radius:
1350mm
Max.height of workpiece:
1200mm
Spindle speed:
3speed 23/50/100rpm
Drive motor:
1.5KW/380V
Elevating motor:
0.18kw/380v
Table dimensions:
1380*800mm
Weight:
650kg
Package Size:
1570*1140*1700mm
2.Radial Tapping &Drilling Machine Series
Specification:
ZS4012－300
Tapping capacity(Steel):
M2-M12
Max.drilling capacity:
Φ16mm
Working radius:
190-300mm
Max.height of workpiece:
400mm
Spindle speed:
2speed 230/900rpm
Drive motor:
0.55KW/380V
Elevating motor:
0.04kw/380v(optional)
Table dimensions:
500*380mm
Weight:
115kg
Package Size:
860*580*1050mm
Specification:
ZS5012－600S
Tapping capacity(Steel):
M2-M12
Max.drilling capacity:
Φ16mm
Working radius:
250-600mm
Max.height of workpiece:
550mm
Spindle speed:
Drilling 3speed 520/1050/1900rpm
Tapping 2speed 360/560rpm
Drive motor:
0.55KW/380V*2
Elevating motor:
0.09KW/380v
Table dimensions:
800*500mm
Weight:
232kg
Package Size:
1320*760*1520mm
3.Servo Motor Tapping Machine Series
Specification:
SWS24－1100
Tapping capacity(Steel):
M3-M24
Working radius:
1100mm
Max.height of workpiece:
400mm
Spindle speed:
0-150rpm
Drive motor:
0.75KW/220V
Table dimensions:
700*500mm
Weight:
110kg
Package Size:
770*5300*740mm
Specification:
SWS27－1100
Tapping capacity(Steel):
M3-M27
Working radius:
1100mm
Max.height of workpiece:
400mm
Spindle speed:
0-120rpm
Drive motor:
0.75KW/220V
Table dimensions:
700*500mm
Weight:
110kg
Package Size:
770*5300*740mm
4.DD Series Self Balanced Sliding Jib Crane|Blew 0.5T crane
Specification:
Blew 0.5T crane |DD-500 \ DD-400\ DD-300\ DD-200 \ DD100
Lifting height:
1500-4500mm
Lifting weight:
100~500kg
Max. turning radius:
1500-3000mm
Min. turning radius::
450mm
The motor:
3000W 90W
Operation:
halded remote control
Weight:
500-2000kg
Features:
Self balanced,moveable,easy control,no fixed foot
5.Customized Machine
Universal Drilling Machine
Horizontal Tapping Machine

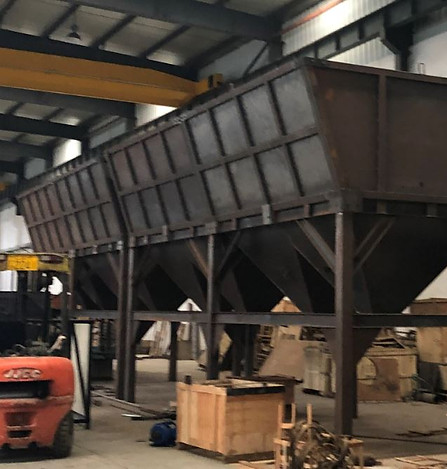

Customized Concrete Mixing Container
6.Others
